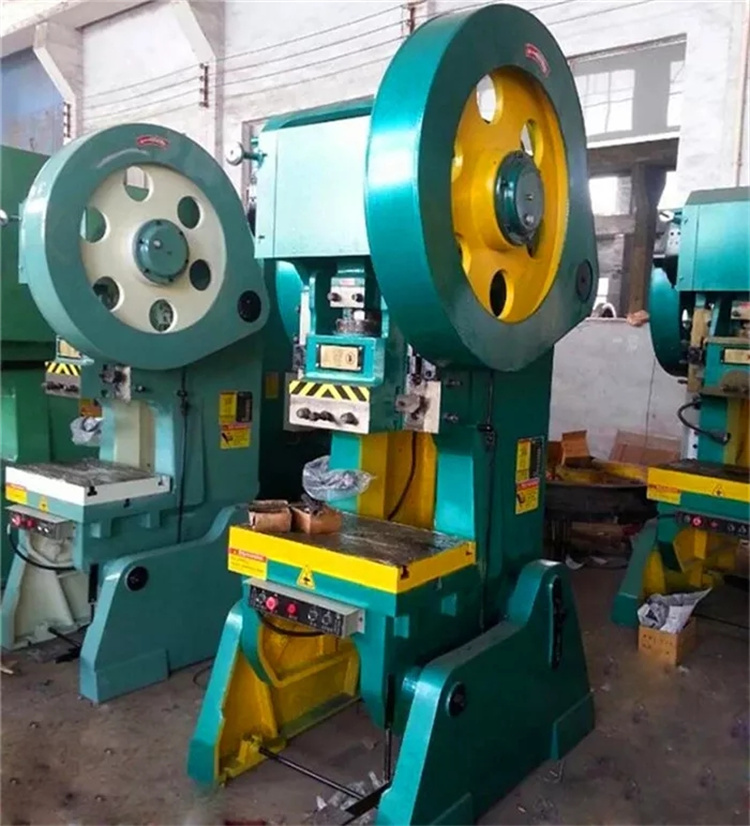

200 ton J23 c press mechanical punching machine

Hjem / Produkter / 200 ton J23 c press mechanical punching machine

Features

  • J23 series are general open-tilting power press with simple structure ,reliable performance and easy operation .J23 can adopt rigid turn-key clutch .
  • So, it is convenient for operation and maintenance .J23 can also adopt emergency stop service to make the slider block suddenly stop on the range of 0-135 degree,and the photoelectrical protector device is optional .
  • J23-100B and J23-125 are special among the J23 series .Their main body is cast in iron .The cranked axle is settled vertically .Eccentric sleeve makes easy adjustment .And there is also pneumatic friction.Therefore ,J23-100B and J23-125 enable to work with small impact and sationarity and make slider block stop at any position .

Applications

Spesifikasjon

Spesifikasjon
Enheter
JB23-40
JB23-63
JB23-63A
Nominelt trykk
KN
400
630
630
Nominell kraftslag
mm
4
4
4
Skyveslag
mm
80
80
80
Antall skyveslag
ganger/min
50
50
50
Maksimal dysesetthøyde
mm
230
250
300
Dysesett høydejustering
mm
45
50
50
Avstand fra glidebryterens senter til rammen
mm
220
250
250
Arbeidsbord dimensjon
mm
390 x 630
420 x 650
470 x 750
Tykkelse på arbeidsbordpanelet
mm
70
70
80
Størrelse på håndtakshullet
(diameter x dybde)
mm
φ50x70
φ50x70
φ50x70
Vertikale søyler avstand
mm
330
320
390
Hovedmotor
Modell
Y112M-4
Y132S-4
Y132S-4
Makt
KW
4
5.5
5.5
Maksimal vippevinkel på kroppen
°
25
25
25
Total dimensjon (LxBxH)
mm
1600X1100X2250
1740X1100X2560
1740X1180X2560
Vekt
Kg
2960
3800
4300
